Rolled Copper Foil & Copper Strip 0.1 mm Thick

Rolled Copper Foil & Copper Strip 0.1 mm Thick Details :

● Alloy/grade:TU1、C1011、C1100,C10100、CW009A、OF-CU、2.0040、CU-OFE、TU2、C194、ED copper foil、C11000、C10200、C12000、C12200、

●Temper:O,1/4H,1/2H

● Width: Max. Width 1310mm ,and width can be cutting as request.

● Core ID:76mm;80mm;152mm;300mm;500mm

● Standard Export Wooden Box Package




Product Detail

Product Tags

Application

For faradays cages /Faraday Cage.

EMI shielding room ,RF MRI shielding.

New energy vehicle.

Transformer.

Photovoltaic Welding Tape.

Wire Shield Copper Tape.

Electrical Appliances.

Copper strips for solar energy.

Copper strips for RF cables.

Copper strips for new energy batteries.

Range and Tolerance Products

Thickness Range (mm)

Tolerance (mm)

Width Range (mm)

Tolerance (mm)

Panel Length Range (mm)

Tolerance (mm)

0.1 - 0.15 ±0.003 17 - 90 ±0.03 800 - 2000 ±1
0.16 - 0.4 ±0.005 91 - 150 ±0.05 - -
0.41 - 0.8 ±0.015 151 - 300 ±0.1 - -
0.8 - 1.5 ±0.03 301 - 1350 ±0.2 - -
1.51 - 3.0 ±0.05 - - - -



Copper Grades
GB DIN EN ISO UNS JIS
TU2 OF-Cu 2.004 Cu-OFE CW009A Cu-OF C10100 C1011
  SE-Cu 2.007 Cu-HCP CW021A   C10300
  SE-Cu 2.007 Cu-PHC CW020A   C10300
T2 E-Cu58 2.0065 Cu-ETP CW004A Cu-ETP C11000 C1100
TP2 SF-Cu 2.009 Cu-DHP CW024A Cu-DHP C12200 C1220
  SF-Cu 2.009 Cu-DHP CW024A Cu-DHP C12200 C1220
  SF-Cu 2.009 Cu-DHP CW024A Cu-DLP C12200 C1220



Chemieal Composition & Physical Properties

Alloy

Cu

P

O

Density [g/cm²]

Specific Electrical Conductivity [%IACS]

Electrical Resistivity [μΩ.cm]

C11000

≥99.90

..

..

8.94

≥98

1.75

C10200

≥99.95

≤0.001

≤0.001

8.94

≥100

1.724

C12000

≥99.90

0.004 - 0.012

..

8.94

≥90

1.91

C12200

≥99.90

0.015 - 0.040

..

8.94

≥79

2.18

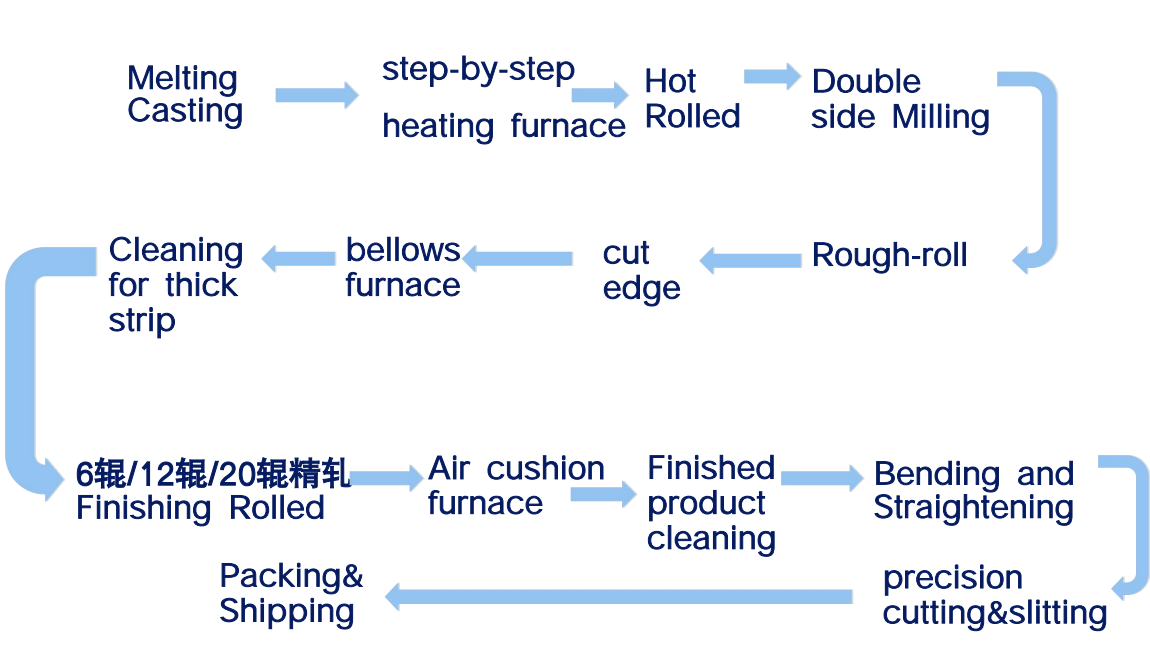

Process Flow Chart

12
